AE Smart Launches All-New M-Desktop Socket Series: Redefining Desktop Power Delivery – Plug & Play, Globally Compatible
AE Smart is proud to announce the official launch of the all-new M-Desktop Socket Series – a modular, tool-free desktop power and data connectivity solution designed for modern offices, meeting rooms, and commercial spaces.
As a leading provider of intelligent conference and office solutions, AE Smart continues to drive innovation with products that enhance productivity and user experience. The M-Desktop Socket Series embodies this commitment, delivering unmatched flexibility and global readiness.
Modular Design for Ultimate Flexibility
The M-Desktop Socket Series features an innovative modular architecture that allows users to freely combine different function modules based on actual needs – from power sockets and USB charging ports to HDMI and RJ45 data interfaces. One system, infinite possibilities.
Globally Compatible, Truly Plug & Play
The series supports a wide range of global power standards with multiple socket options:
|
Model |
Description |
|
DM-UN |
Universal standard power socket |
|
DM-GB |
United Kingdom power socket |
|
DM-DE |
Germany (Western Europe) power socket |
|
DM-US |
American power socket |
|
DM-CH |
Chinese standard power socket |
|
DM-FR |
French standard socket |
All power modules support 100-250V ~50/60Hz, 10A input with a built-in 10A 250V fuse for guaranteed safety.
Versatile Function Modules for Every Need
Beyond power sockets, the M-Desktop Socket Series offers a comprehensive range of data and charging modules:
|
Model |
Description |
Key Specifications |
|
RET-TYPE-C |
Type-C retractable cable |
3-in-1, retractable length 1500mm, fixed end 250-600mm; USB 3.1 Gen, 10Gbps max; 4K resolution; 100W max charging |
|
RET-USB-A |
USB-A retractable cable |
USB-A 3.0, retractable length 1500mm, fixed end 250-600mm; 5Gbps max data transfer |
|
RET-HDMI |
HDMI retractable cable |
HDMI 2.0, retractable length 1500mm, fixed end 250-600mm; 4K@60Hz |
|
KM-2RJ45 |
Passive module with 2 RJ45 ports |
2 female inputs, 2 female outputs; S/FTP CAT6a |
|
KM-TC |
Passive USB-C passthrough module |
1 USB-C female input, 1 USB-C female output; 4K, 10Gbps, 65W charging |
|
KM-UB |
Passive USB-A passthrough module |
1 USB-A female input, 1 USB-A female output; 5Gbps |
|
KM-2H/1 |
Passive 2-to-1 HDMI switching module |
2 HDMI inputs, 1 HDMI output; 4K@60Hz |
|
KM-AC1 |
USB-A + Type-C charging module |
Input 100-250V ~50/60Hz 10A; Type-C output: 5V3A/9V3A/12V3A/15V3A/20V3.25A (65W); USB-A output: 5V3A/9V2A/12V1.5A |
|
KM-1H |
Passive HDMI passthrough module |
1 HDMI female input, 1 HDMI female output; 4K@30Hz |
|
KM-KB |
Blank filler module |
Fills vacant installation positions |
Tool-Free Installation, Hassle-Free Experience
Designed with both installers and end users in mind, the M-Desktop Socket Series requires no tools for installation. Available in three size variants:
|
Model |
Cutout Dimensions |
|
M4 Series |
203×84 mm (7.99″×3.31″) or 200×57 mm (7.87″×2.24″) |
|
M3 Series |
158×84 mm (6.22″×3.31″) or 155×57 mm (6.1″×2.24″) |
|
M2 Series |
113×84 mm (4.45″×3.31″) or 110×57 mm (4.33″×2.24″) |
We recommend using the template (packed with the device) for maximum accuracy. The product accommodates table thicknesses from 20-80mm (0.787-3.15").
Color Options
The M-Desktop Socket Series is available in Black (RAL9005) and Silver, with module color in RAL9005 – designed to blend seamlessly into any office or commercial environment.
The Angled Inner Frame Advantage

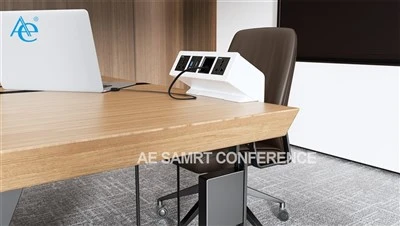

The smart angled inner frame effectively prevents structural interference between the power plug and the frame, keeping cords neatly organized and tangle-free for a clean, safe desktop.
Summary

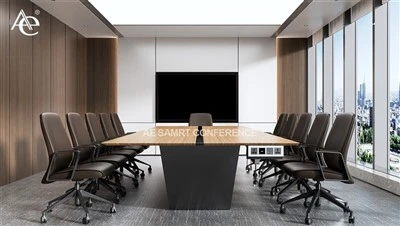

With its modular design, tool-free installation, and global compatibility, the AE Smart M-Desktop Socket Series delivers a powerful, elegant, and versatile desktop power and data connectivity solution for corporate boardrooms, coworking spaces, hotels, educational institutions, and beyond.
One solution. Zero hassle. Global ready.
Learn more: https://www.aesmartconference.com/desktop-socket/rectangle-type/m-desktop-socket.html
For technical specifications, installation guides, or bulk order inquiries, please contact our sales team.
