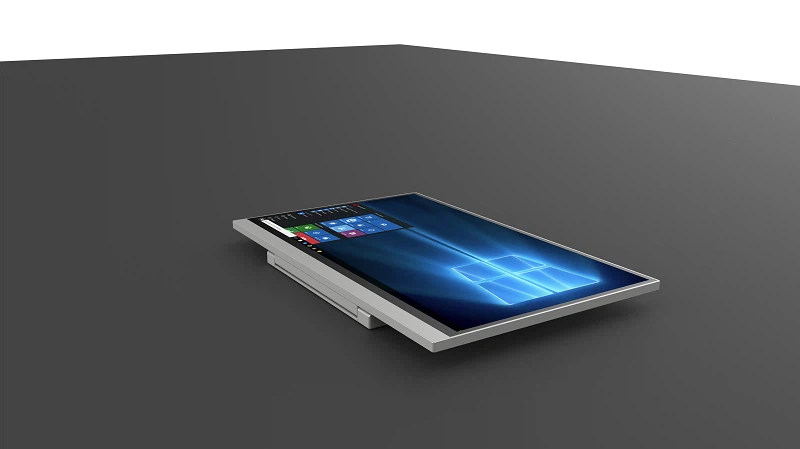

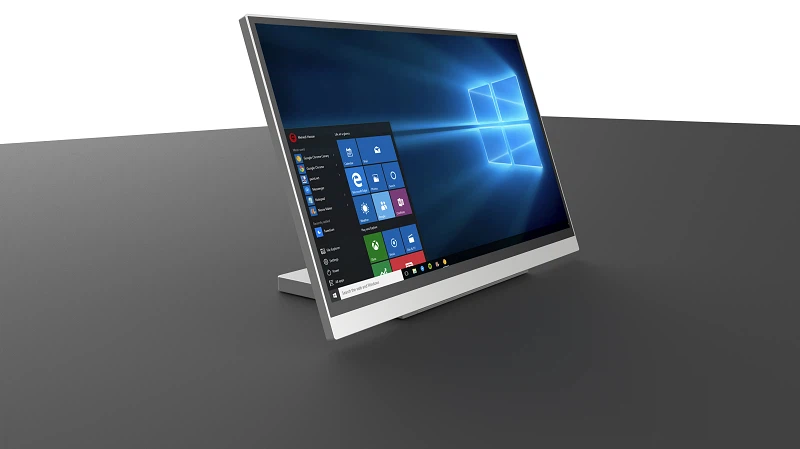

The 17" Recessed Manually Foldable Monitor - M series motorized retractable monitor , fashionable, smaller, lighter, scientific and steady. AX-17M to adopt 7.5 mm ultra thin screen, and the back of the screen is made of toughened glass. Screen size is 17.3", the tilting angel is manually adjustable 0-110°, which is accords with ergonomic principles, and can be easily realized by One-Key Control. Host, Touch Screen, Keyboard, Mouse are optional. Retractable touch screen makes interactive operation very convenient, with ultra-narrow 75mm panel, the functions is enough for the requirements of ordinary session, and more suitable for the small size conference table and small space conference room or large space conference center.
The 17" Recessed Manually Foldable Monitor is equipped with a 17.3" large screen that supports 0-110° wide-angle manual inclination adjustment. It offers a one-click locking function for the ergonomic comfortable viewing angle, catering to both standing collaboration and sitting office scenarios. It can be optionally equipped with a touch screen, keyboard and mouse, and a host module. The 75mm ultra-narrow panel integrates an electrically adjustable touch screen, allowing for operations such as agenda page flipping and annotation writing with a light touch. The modular design is adaptable for flexible deployment, enabling seamless integration into small conference tables or large venues. The streamlined wiring solution saves desk space. The anti-glare screen and matte frame resist environmental light interference, while the tempered glass back panel enhances the durability of the equipment. Combined with a paperless meeting system, it enables simultaneous document display, electronic signature, and cloud storage. By integrating "lightweight hardware + scenario-based interaction," it redefines the standard for efficient meetings and provides green office solutions with professional features and space adaptability for government and enterprise clients.
Specification
Display
|
Screen size |
17.3 inch |
|
Matrix type |
IPS |
|
Resolution |
1920*1080 |
|
Brightness |
250cd/㎡ |
|
Contrast ratio |
800:1 |
|
Aspect ratio |
16:9 |
|
View angle |
85/85/85/85 |
|
Backlight lifespan |
15000 hours |
|
Response time |
16(Typ.)(Tr+Td)ms |
|
Screen tilt |
0-110°manually adjustable |
|
Touch (if have) |
10 point capacity |
Electronical
|
Signal input |
HDMI+ VGA |
|
Touch input(if have) |
USB |
|
Terminal block |
PC switch+signal switch |
|
Power supply |
DC 12V |
|
Power consumption |
≤30W |
Mechanism
| Finishing G.W. |
black/ silver, matt/brushed |
| customization available | |
| 4kgs | |
| Packing dimension | 598*440*92 mm |
| Temperature | working 0°C~ + 50°C,storage -20°C~+ 60°C |
| Humidity | working≤90%, storage≤90% |
Accessory
| Power cord | adapter | inatltion clamp |
