Product Description:

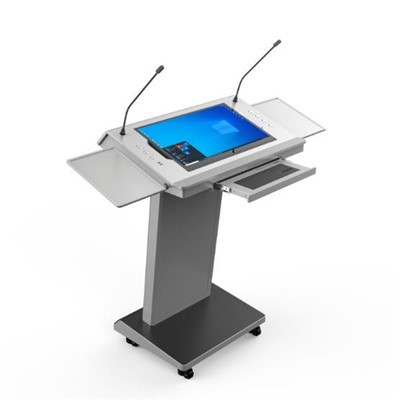

The YHJT-24 Touchscreen Teaching Podium for Modern Classrooms is a revolutionary tool designed to enhance the contemporary education experience. This touchscreen teaching podium features a high-definition touch display, offering educators an advanced platform for delivering engaging lessons and interactive instruction.
With its intuitive interactive technology, the podium enables teachers to effortlessly navigate digital content, annotate on the fly, and manage multimedia presentations. Perfect for modern classrooms, this podium brings together essential instructional tools in a sleek and efficient design.
Supporting extensive multimedia integration, the Touchscreen Teaching Podium allows for the use of various content types, from slideshows to videos, ensuring a dynamic and captivating learning environment. The podium's integrated solutions include versatile connectivity options, making it a central hub for all classroom technology needs.
Built with advanced teaching tech, this podium provides educators with the resources needed to enhance lesson delivery and student participation. The Touchscreen Teaching Podium for Modern Classrooms is an ideal addition to any educational setting, offering a comprehensive solution that combines innovation and interactivity to elevate the teaching and learning experience.
Product Features:
1). Appearance design: The appearance is novel, beautiful, and full of technological sense;
2). Complete functions: Provides interactive conference and speech scenarios, the function modules equipped on the podium are complete, and the experience is superior;
3). Height adjustment: Designed with a power lifting device, the height of the podium can be adjusted by raising and lowering the table according to the height of the speaker, and the height adjustment is no more than 200mm;
4). Data processing and display: Equipped with a display computer all-in-one machine, the display screen has both display and touch functions, built-in computer, can process data, has external interfaces, and can connect with various functional devices in the podium; the display screen can be electrically flipped, and the flipping angle is 0-60 degrees to meet the comfortable viewing angle of the speaker;
5). Speech equipment: Equipped with a conference microphone with good sound pickup effect, and through the amplification device, the speech effect can be enhanced; equipped with a laser pointer, when connected to an external display screen, it can be used as a laser teaching wand; equipped with a desktop lighting lamp, in conference rooms, studios, and other scenes, it provides lighting functions for speakers when using speeches, lecture notes, etc.;
6). Storage equipment: Equipped with left and right trays on the table, one tray is installed on each side of the table, the right side can be used to place speech manuscripts, stationery, etc. The left side can be used to place electronic devices such as laptops and PADs. One damping pivot is installed on each side of the table frame, so that the tray can be flipped down by about 18 degrees;
7). Operation function: Equipped with a table button board, which can control the total power supply of the podium, the lifting of the table, the flipping and stopping of the display computer all-in-one machine, and the table lighting; equipped with a keyboard and mouse for data processing control;
8). Electronic desk sign: The electronic desk sign can be used to display the name of the operating desk position, the name of the operator, and the current work task being executed by the operator through settings;
9). External interface: The podium includes a set of external interface boards, including power interfaces and signal interfaces, which can quickly connect to external 220V power supplies and other external devices;
10). Laptop expansion interface: The left side of the table has a power interface and signal interface for connecting a laptop;
11). Other functions: Equipped with a cup holder; equipped with table foot casters for easy movement of the podium.
Product parameter list
|
No. |
Technical name |
Quantity/Unit |
Main functions |
Main parameters |
|
dedicated conference microphone |
1 |
phantom power supply, with sound pickup function, with locking plug-in microphone pole design, quick installation; anti-mobile phone, electromagnetic interference |
Energy conversion method: capacitive; Frequency response: 40Hz-16KHz; Sensitivity: -38dB±2dB. |
|
|
Illumination table lamp |
1 |
for the lighting of the electronic podium, suitable for speech or meeting scenes where the podium is located |
Working voltage: DC 12V; Power: 0.5W; Interface form: 4-core XLR male; Table lamp pole features: bendable gooseneck hose. |
|
|
laser pointer |
1 |
Integrating remote technology and laser pointer, it can respond in seconds and control it as you like. |
Control distance: 100 meters; Compatible interface: USB3.0/2.0/1.1; Laser color: red. |
|
|
display computer all-in-one machine |
1 |
with computer information processing and display functions, and the display screen has touch function. Display computer all-in-one external interface: with video signal interface, network interface, power input interface, audio interface, computer switch interface, USB interface. |
Panel size: 23.8 inches; Panel type: a-Si TFT-LCD , liquid crystal module; Resolution: 1920*1080, capacitive touch; Panel brightness: 250cd/m2 (Typ.); Power consumption: normal operation: 45W (typical value); standby: <0.5W. |
|
|
8.8-inch electronic table card |
1 |
Electronic table card can be used to display the name of the console station, the name of the operator, the work tasks the operator is currently performing, etc |
LCD size: 8.8 inches; Resolution: 1280×320; Color: 64K colors; Brightness: 300cd/m2. |
|
|
Table key board (including microphone holder and lighting lamp holder) |
1set |
Main power switch, lighting switch, display computer all-in-one flip control button, table lifting control button. |
|
|
|
Keyboard and mouse (equipped with keyboard drawer) |
1set |
Control function, the keyboard and mouse are integrated in the drawer, the drawer is a drawable structure, and can be hidden under the table when not in use |
Interface: USB interface; Working voltage: 4.5-5.5V DC; Working current: less than 30mA. |
|
|
Left and right fixed trays |
one on each side |
The right side can be used to place speeches, stationery, etc. The left side can be used to place electronic equipment such as laptops and PADs |
One damping shaft is installed on the left and right sides of the countertop frame, and the left and right trays are connected to the damping shaft through the tray shaft parts, so that the tray can be turned down about 18 degrees. |
|
|
Laptop expansion interface |
1set |
The expansion interface is set on the left side of the table, including power interface and HDMI interface. |
|
|
|
Cup holder |
1set |
place the water cup |
can adapt to a cylinder with a diameter of less than 7cm |
|
|
Foma casters |
4 |
easy to move the position of the podium |
load-bearing (four wheels): 100kg |
Application Scenario:
Provide operators with interactive conference speech scenes, mainly used in conference halls and command centers. It is suitable for multi-purpose scenarios such as conference halls, auditoriums, and indoor command rooms.
FAQ:
Q: What is the warranty period for the YHJT-24 WHP? A: The warranty period for the YHJT-24 WHP is 1 year.
Q: Can I connect my laptop to the podium? A: Yes, the podium has multiple connectivity options, including HDMI and USB ports, allowing you to connect external devices such as laptops, tablets, and smartphones.
Q: Is the podium easy to assemble and disassemble? A: Yes, the podium is designed to be lightweight and portable, making it easy to assemble and disassemble. It can be set up and ready to use in minutes.
Q: Can I use the podium for remote teaching? A: Yes, the podium can be used for remote teaching by connecting it to a video conferencing platform such as Zoom or Microsoft Teams.
