3-in-1 Conference System – Display, Nameplate & Mic in One Unit | AE Smart Conference

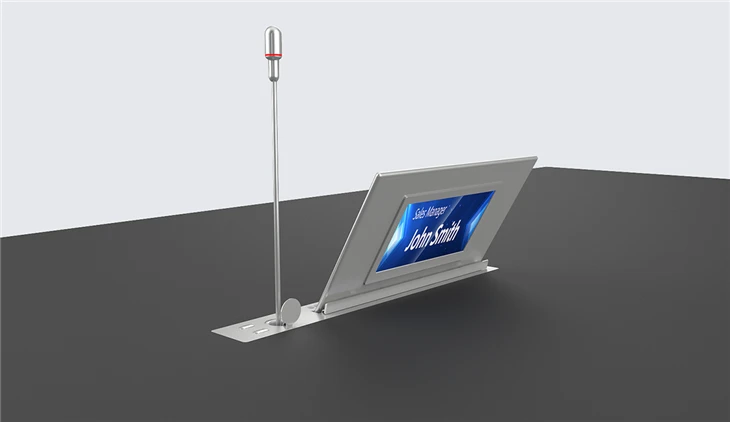

The AX-15MG from AE Smart Conference combines a motorized monitor, digital nameplate, and liftable microphone into a single, elegant conference solution.
What's inside:
- 15.6" Full HD IPS monitor – motorized 0–25° tilt
- 10.1" digital nameplate – free software included
- Liftable microphone – compatible with Televic, Bosch, Sennheiser, Shure & Audio-Technica
Why it stands out:
- Power loop – fewer cables, cleaner table
- Independent movement – monitor & mic operate separately
- RS485 protocol – seamless central control integration
- Ultra-narrow bezel + anti-glare
- No clutter. No compromise. Just smart.
- Perfect for boardrooms, government meeting halls, and high-end conference venues.
Specification
Display
|
screen size |
15.6 inch |
|
matrix type |
IPS |
|
resolution |
1920*1080 |
|
brightness |
400cd/㎡ |
|
contrast ratio |
800:1 |
|
aspect ratio |
16:9 |
|
view angle |
85/85/85/85 |
|
backlight lifespan |
30000 hours |
|
response time (if any) |
30(Typ.)(Tr+Td)ms |
|
screen tilt |
0-25°motorized adjustable |
|
touch (if any) |
10 point capacity |
Nameplate
| Screen size | 10.1 inch |
| Resolution | 1024* 600 |
| Brightness | 300cd/mf |
Microphone
| Compatible |
Televic/Bosch/Sennheiser Shure/Audio-Technica subject to order |
Electronical
| Signal input | HDMI+ HDMI |
| Data input | USB 3.0 |
| Touch input (if any) | USB touch |
| Terminal block | PC switch+signal switch |
| Protocol | RS485 |
| Power supply | AC 220V 50Hz |
| Power consumption ! | < 60W |
| Power loop | 600W max. |
Mechanism
| Cover plate | anodized aluminium |
| Finishing |
black/ silver, matt/brushed customization available |
| G.W. | 18.5kgs |
| Packing dimension | 825* 730*190 mm |
| Temperature | working 0°C~ + 50°C,storage -20°C~+ 60°C |
| Humidity | working≤90%, storage≤90% |
Accessory
| Power cord | RS485 control cable |
Control
| Manual | RS485 |
FAQ:
Q1: Customization service
OEM/ODM available. Custom cover plate color (black/silver) and surface finish (matt/brushed). Microphone brand compatibility configurable per order.
Q2: Wholesale supported
Wholesale supported. Contact us for current stock availability.
Q3: No minimum order
No minimum order quantity. Single sample unit available.
Q4: Special pricing for first-time orders
Contact us for sample pricing and first-time order discounts.
Q5: Response within 24 hours
Response within 24 hours via email or online inquiry form.
Q6: 15 years in audio & video industry
15 years in audio & video industry. Exporting to 40+ countries with 500+ global partners.
Q7: 12 months warranty
Standard 12-month warranty. Extensions up to 5 years available upon request.
Q8: Looking for Distributors; Looking for Agents
Looking for distributors and agents worldwide.
Q9: Worldwide shipping available
Worldwide shipping available. No export restrictions.
Q10: Brand New & Factory-Sealed
100% brand new, factory-sealed.
For detailed pricing, customization options, and warranty extensions, send us an inquiry - we reply within 24 hours.
