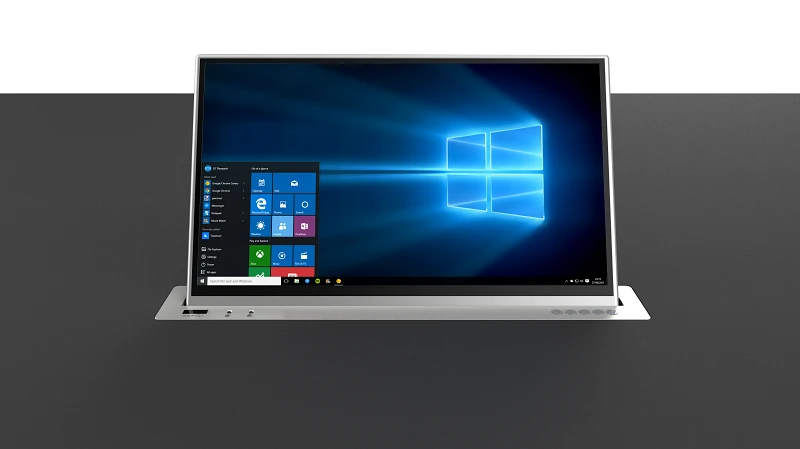

17" Motorized Retractable Monitor With Nameplate

17" Motorized Retractable Monitor With Nameplate

Details
Name:Motorized Retractable Monitor With Nameplate
Model:AX-17FP
Screen size:17.3”
Weight:16kgs
Dimension:575*810*175mm
Category
Motorized Retractable Monitor With Nameplate

Send Inquiry
Description
Technical Parameters

The 17" Motorized Retractable Monitor With Nameplate is equipped with a full-view 17.3" screen that has been treated for anti-glare. The screen tilt angle is motorized adjustable within the range of 0 to 25°. Additionally, a free nameplate software is provided to make your use more convenient. The power loop has reduced the cables under the table, making the office environment cleaner.



The 17" Motorized Retractable Monitor With Nameplate is designed for high-end business scenarios. It is equipped with a glare-proof full-view large screen, supports 0-25° electric inclination adjustment, and is paired with a silent lifting system. It can be switched between speech and collaboration modes with one click. The innovative integrated electronic nameplate function allows for free customization of software to display name, position and dynamic display of meeting agendas. It is smartly linked with the main screen content. The body adopts a hidden cable management design. The power lines are uniformly stored at the bottom of the desktop, creating a "zero cable" minimalist office environment. The anodized aluminum ultra-thin frame combined with matte texture craftsmanship endows the product with a low-key and luxurious business atmosphere. From the intelligent lifting screen to the electronic nameplate ecosystem, with a soft and hard integrated solution, centralized control of meeting equipment is achieved, reducing the complexity of multi-terminal operations, helping enterprises efficiently promote the transformation to paperless meetings, and reshaping professional, tidy and sustainable digital office spaces.



Specification



product-8-9 Display

Screen size

17.3 inch

Matrix type

IPS

Resolution

1920*1080

Brightness

250cd/㎡

Contrast ratio

800:1

Aspect ratio

16:9

View angle

85/85/85/85

Backlight lifespan

15000 hours

Response time

16(Typ.)(Tr+Td)ms

Screen tilt

0-25°motorized adjustable

Touch (if have)

10 point capacity



product-8-8 Nameplate

Screen size 10.1 inch
Resolution 1024* 600
Brightness 300cd/mf



product-8-9 Electronical

Signal input
HDMI+HDMI
Data input USB 3.0
Touch input(if have) USB
Terminal block PC switch+signal switch
Protocol RS485
Power supply AC 220V~250V 50~60Hz
Power consumption ! < 60W
Power loop 600W max.



product-8-9 Mechanism

Cover plate anodized aluminium
black/ silver, matt/brushed
Finishing customization available
G.W. 16kgs
Packing dimension 575* 810*175 mm
Temperature working 0°C~ + 50°C,storage -20°C~+ 60°C
Humidity working≤90%, storage≤90%



product-8-9 Accessory

Power cord RS485 control cable



product-8-9 Control

Manual RS485
