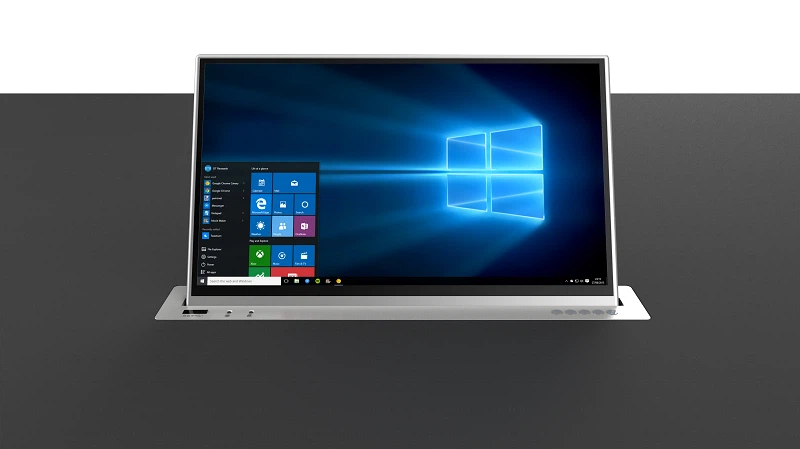

17" Motorized Retractable Monitor

17" Motorized Retractable Monitor

Details
Name:Motorized Retractable Monitor
Model:AX-17MF
Screen size:17.3’’
Weight:16kgs
Dimension:575*810*175mm
Category
Motorized Retractable Classic Monitor
Share to
Send Inquiry
Description
Technical Parameters

The size of screen equipped on 17'' Motorized Retractable Monitor conference display lift is 17.3'', the tilting angle is motorized adjustable 0-25°. Host, Touch Screen are optional.The unique ergonomic design ensures a comfortable user experience.Power loop reduces cables under the table,maintaining a clean and organized workplace.



The 17'' Motorized Retractable Monitor is equipped with a 17.3'' anti-glare display screen, supporting 0-25° electric tilt angle adjustment. The silent motor drive ensures precise and smooth angle switching. It can be optionally equipped with a touch screen and a host module. Through ergonomic design, it is suitable for various sitting and standing postures, alleviating fatigue from long meetings. The innovative power cycle system integrates power supply and signal transmission, reducing redundant cables under the table and creating a minimalist office environment. The ultra-thin body can be concealed in various conference tables. The tempered glass back panel and metal frame enhance durability, and the matte surface treatment resists fingerprint residue. Combined with the paperless conference system, it enables simultaneous file annotation, electronic signature, and agenda management. From small meeting rooms to large exhibition centers, with a highly integrated hardware architecture and intelligent interaction logic, it promotes the advancement of meeting processes towards efficiency, low carbon, and space-friendly directions, and reshapes the new standard for professional digital conferences.



Specification



product-8-9 Display

Screen size

17.3 inch

Matrix type

IPS

Resolution

1920*1080

Brightness

250cd/㎡

Contrast ratio

800:1

Aspect ratio

16:9

View angle

85/85/85/85

Backlight lifespan

15000 hours

Response time

16(Typ.)(Tr+Td)ms

Screen tilt

0-25°motorized adjustable

Touch (if have)

10 point capacity



product-8-8 Electronical

Signal input

HDMI+HDMI

Data input

USB 3.0

Touch input(if have)

USB

Terminal block

PC switch+signal switch

Protocol

RS485

Power supply

AC 220V 50Hz

Power consumption

<60W

Power loop

600W max.



product-8-8 Mechanism

Cover plate anodized aluminium
black/ silver, matt/brushed
Finishing customization available
G.W. 16kgs
Packing dimension 575* 810*175 mm
Temperature working 0°C~ + 50°C,storage -20°C~+ 60°C
Humidity working≤90%, storage≤90%



product-8-8 Accessory

Power cord RS485 control cable



product-8-8 Control

Manual RS485
