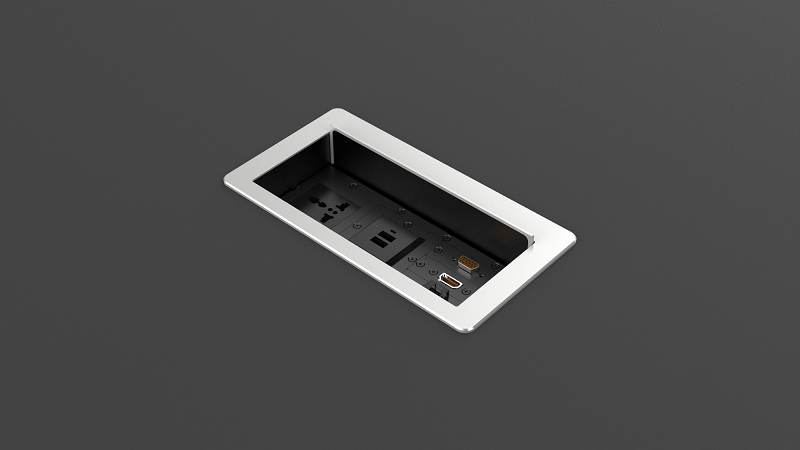

The Multiple Purpose Control Cubby comes in various styles and the cover plate is made of anodized aluminum. You can choose from black or silver color, as well as matt/brushed finish options. It is equipped with an HDBaseT signal switch module and supports HDMI, DP, Type C and 70m/100m signal transmission. It supports 4k/1080p 60 hz, 3D, and 36bit. Its configuration can be flexibly selected according to your needs.
The Multiple Purpose Control Cubby is crafted with an anodized aluminum one-piece panel to achieve a minimalist industrial aesthetic, perfectly fitting the visual system of high-end conference spaces. It integrates the HDBaseT module and supports the three-mode mixed matrix of HDMI, DP and Type-C, enabling 4K@60Hz lossless transmission and long-distance signal transmission of 70/100 meters to meet the deployment requirements of large conference venues. The modular design allows for free selection and expansion of units, seamlessly integrating various terminals, audio-visual equipment, etc. It provides a complete solution integrating signal management, energy distribution and spatial aesthetics for multiple scenarios.
Specification
Socket module
| Power outlet | Universal, EU, GB, US, AU, BR, SA FR, IT, Sw, per order |
| Available connector | HDMI, VGA, USB A, USB A charging, Type C, DP, CAT6, |
| Type C charging, XLR, USBAC charging, DVI, 3.5Audio | |
| HDMI retractor, CAT6 retractor, 3.5Audio retractor | |
| CAT6 retractor USB A retractor, Type C retractor |
Central control module
| Protocol | RS232 |
| Relay | 2A 30VDC, 0.3A 125VAC |
| Power | 12V 1A |
| Supply mini | connect to PC for software telecom |
HDBaseT signal switch module
| Signal input | HDMI, DP, Type C |
| Signal transfer distance | HDMI 70m max. |
| DP, Type C 100m max. | |
| Resolution | 4K, 1080P 60Hz 3D, 36bit |
| Power supply | PoG DC 12V |
| RS232 data transfer | two-way |
| LED indicate light | signal switch |
Housing
| Cover plate | anodized aluminium |
| Finishing G.W. |
black/ silver, matt/brushed |
| customization available | |
| 3.5kgs | |
| Packing dimension | 240*200*200 mm |
| Temperature | working 0°C~ + 50°C,storage -20°C~+ 60°C |
| Humidity | working≤90%, storage≤90% |
Accessory
| Power cord | installation clamp |
